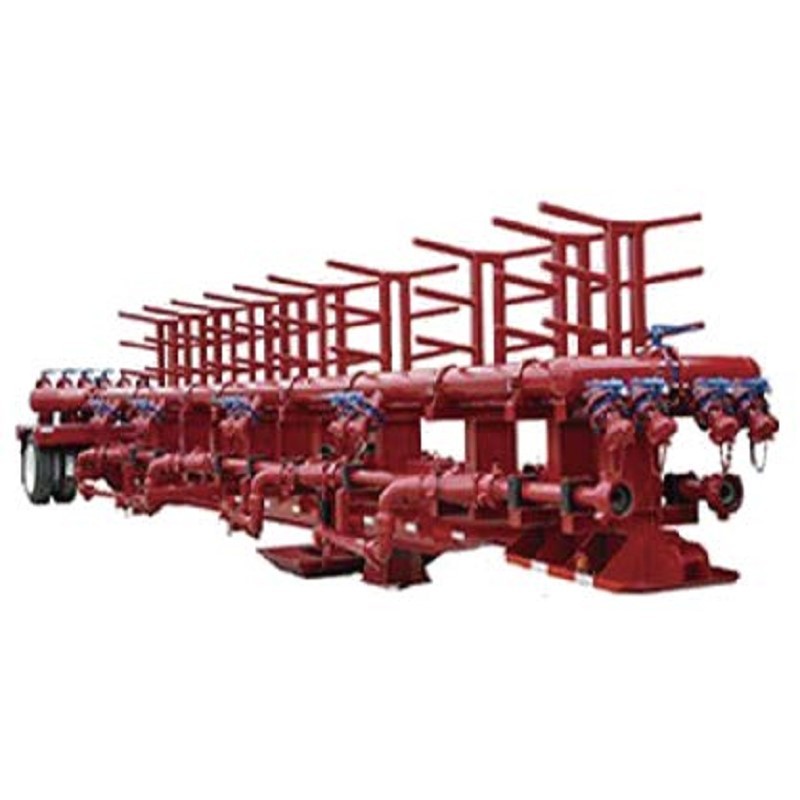

High thiab Low Pressure Manifold Khoom

Raws li kev tsim kho qhov chaw zoo



Main configuration parameters

Qauv	105 MPa	140 MPa
Txoj kev thauj mus los	Tsheb -mounted / semi-trailer / skid-mounted
Trailer hom	Sinotruk / Beiben / BENZ / txiv neej
Siab ntsuas twj tso kua mis	VF 14 / RD115	VF 12 / RD120
Ua haujlwm siab tshaj plaws	105 MPa	138 MPa rau
Truck -mounted crane	National / UNIC
Qhov siab tshaj plaws lifting muaj peev xwm	10 t / 12 t / 16 t / 18 t





Tsim kom muaj kev nyab xeeb siab tshaj plaws thiab kev tswj hwm hauv kev ua haujlwm tseem ceeb, peb Cov Khoom Siv Siab Siab thiab Tsis Txaus Siab Manifold yog tsim los rau kev tswj cov kua dej hauv qhov chaw huab cua. Muab kev ntseeg siab tsis sib xws thoob plaws ntau qhov siab (txog 15,000 PSI / 103.4 MPa), cov manifolds no muaj kev tiv thaiv corrosion-tiv thaiv stainless hlau tsim thiab npuas- nruj sealing tshuab. Qhov no ua kom ntev - lub sijhawm ua haujlwm kev nyab xeeb thiab kev ua haujlwm ruaj khov rau kev thov hauv cov roj & roj, kev ua tshuaj lom neeg, thiab siab - hydraulic systems.



High thiab Low Pressure Manifold Equipment yog hais txog kev sib koom ua ke ntawm cov kav dej. Ua haujlwm raws li cov ntsiab lus tswj hwm hauv nruab nrab, cov manifolds no ua rau cov neeg ua haujlwm tswj hwm ntau cov kab dej, hloov txoj hauv kev ntws, lossis cais cov ntu kom ruaj ntseg rau kev saib xyuas-tag nrho yam tsis tas yuav tsum tau kaw tag nrho. Feem ntau yog tsim los ntawm qib siab - cov ntaub ntawv qib siab xws li stainless lossis carbon steel, lawv tau tsim los tswj cov kev ntsuas siab xws li qis (hauv qab 500 PSI / 3.4 MPa) mus rau siab heev (dhau 15,000 PSI / 103.4 MPa), ua kom lawv lub luag haujlwm tseem ceeb hauv kev lag luam tseem ceeb.





Engineered rau Precision thiab Reliability
Hauv lub ntiaj teb xav tau ntawm kev tswj cov kua dej, kev ntseeg siab ntawm koj cov khoom siv manifold ncaj qha cuam tshuam rau kev ua haujlwm ntawm kev ua haujlwm, kev nyab xeeb, thiab hauv qab -kab profitability. Peb Cov Khoom Siv Hluav Taws Xob Siab thiab Tsis tshua muaj siab sawv cev rau qhov tseem ceeb ntawm ntau xyoo ntawm kev txawj ntse engineering, tsim tshwj xeeb los daws cov teeb meem los ntawm cov kws tshaj lij hauv cov roj thiab roj extraction, tshuaj ua cov nroj tsuag, thiab cov tshuab hluav taws xob hydraulic.



Superior Kev tsim kho rau cov xwm txheej hnyav
Dab tsi tiag tiag txawv ntawm peb cov khoom siv manifold yog peb txoj hauv kev zoo rau ob qho tib si xaiv cov khoom siv thiab kev tsim khoom precision. Txhua chav pib nrog lub forged stainless hlau lub cev (muaj nyob rau hauv cov qib hwm nrog rau 316L, F51, los yog F55), uas yog raug rau nruj spectrographic tsom xam rau tag nrho cov tshuaj muaj pes tsawg leeg pov thawj. Cov khoom siv nruj me ntsis no tsim lub hauv paus rau qhov tshwj xeeb tiv thaiv corrosion, yaig, thiab kev ntxhov siab corrosion tawg, uas yog raws nraim cov txheej txheem tsis ua haujlwm uas cuam tshuam cov txheej txheem manifolds hauv kev thov xws li kev pabcuam qaub, siab -siab flowlines, thiab offshore ib puag ncig.
Engineered rau huab cua siab (10,{1}} PSI), peb manifolds feature FEA - optimized geometry nrog localized reinforcement. Qhov kev tsim no tshem tawm cov ntsiab lus tsis muaj zog, tswj cov ntawv cog lus hauv qhov chaw nruj, thiab lav tsis muaj kev nyab xeeb. Qhov tshwm sim yog superior endurance tiv thaiv siab spikes, kev co qaug zog, thiab thermal cycling -kev ua tau zoo tshaj li cov qauv tsim.



Precision Sealing Technology
Leakage nyob rau hauv manifold systems sawv cev tsis yog tsuas yog cov khoom poob tab sis tseem ceeb kev nyab xeeb kev nyab xeeb thiab kev ua txhaum ntawm ib puag ncig. Peb lub tswv yim sealing tshuab nyob rau hauv manifold leakage nrog ib qho tseem ceeb innovation: ib tug energized (caij nplooj ntoos hlav - pab) PTFE thawj foob. Kev txhawb nqa los ntawm stainless hlau energizers, nws muab kev txhim khu kev qha nyob rau hauv qhov kub thiab txias ntawm -50℃F txog 450℃F, ib tug ntau yam uas cov pa ntsaws ruaj ruaj feem ntau poob. Qhov tseem ceeb, peb cov qauv tsim "Dynamic Pressure Activation"- lub foob qhov kev ua tau zoo nce ntxiv nrog rau lub zog siab-hloov qhov kev sib tw rau kev ua tau zoo.
Hauv cov ntawv thov tseem ceeb, peb muab ib qho kev xaiv nyob ntawm - loaded packing system tsim los txhawb nqa kev pom zoo qia foob compression thoob plaws tag nrho lub neej ntawm cov khoom siv. Raws li cov ntaub ntawv pov thawj los ntawm cov ntaub ntawv tawm ntawm ntug dej hiav txwv hauv Gulf of Mexico, txoj hauv kev no txo ​​qis kev txij nkawm los ntawm ntau npaum li 60%.







• Txo Cov Khoom Muag Khoom Muag: Peb lub tswv yim tsim qauv modular txhais tau hais tias ib lub cev manifold txais ntau qhov kev teeb tsa. Cov neeg ua haujlwm tuaj yeem tswj xyuas cov khoom seem me me thaum khaws cia qhov yooj yim rau kev teeb tsa manifolds raws li daim ntawv thov hloov pauv. Ib tus neeg siv khoom loj petrochemical tau tshaj tawm txog 40% txo qis hauv cov khoom lag luam valve tom qab ua qauv ntawm peb cov tshuab manifold.
• Simplified Maintenance Procedures: Traditional manifold txij nkawm feem ntau yuav tsum tau ua kom tiav qhov system depressurization thiab ntev downtime. Peb cov cuab yeej suav nrog cov chaw nres nkoj nkag thiab rov qab - lub rooj tsim qauv uas tso cai rau cov pob ntim hloov pauv thaum lub manifold tseem muaj zog siab -ib qho tshwj xeeb uas tau cawm tus neeg ua haujlwm North Sea tshaj 200 teev ntawm tsis yog - lub sijhawm ua haujlwm txhua xyoo.
• Enhanced Flow yam ntxwv: Computational fluid dynamics modeling coj peb txoj hauv kev txaus tsim. Cov kev txhim kho nyob rau hauv cov yam ntxwv ntws, tshwj xeeb tshaj yog 25% txo qis hauv turbulence thiab siab poob piv rau cov pa manifold geometries, txhais ncaj qha rau kev txuag hluav taws xob hauv cov twj siv hluav taws xob thiab txhim kho kev ntsuas qhov tseeb hauv kev siv cov dej ntws.





Pom tau tias tsis muaj ob qhov kev teeb tsa ntsib cov teeb meem zoo ib yam, peb muab cov kev teeb tsa tsim nyog rau cov ntawv thov tshwj xeeb:


Wellhead Control Vaj Huam Sib Luag:Rau siab - siab siv roj thiab roj, peb cov manifolds ua ke nrog hydraulic actuators rau cov chaw taws teeb ua haujlwm thiab ua raws li NACE MR0175 rau cov kev pabcuam qaub. Cov hneev taw me me tso cai rau mounting nyob rau hauv qhov txwv tsis pub muaj lub taub hau thaum tuav tag nrho kev nkag mus rau kev saib xyuas.


Chemical Injection Systems:Tsawg - lub siab sib txawv tsim los rau cov tshuaj txhaj tshuaj meej suav nrog cov koob li qub nrog 0.1% kev daws teeb meem ntws thiab xaiv txoj haujlwm ntsuas kev txheeb xyuas. Kev tsim kho 316L tiv thaiv cov tshuaj lom neeg, suav nrog methanol, corrosion inhibitors, thiab acids feem ntau siv hauv kev tsim tshuaj lom neeg.


Hydraulic Power Units:Peb cov manifold blocks sib sau ua ke ntau lub valve ua haujlwm rau hauv ib lub rooj sib txoos, tshem tawm ntau lub peev xwm xau cov ntsiab lus tam sim no hauv cov kav dej ib txwm muaj. Kev ntsuas siab ua raws li cov qauv hydraulic sib txawv ntawm 3,000 txog 10,000 PSI, nrog cov peev xwm ntws mus txog 200 GPM nyob ntawm kev teeb tsa.





Cov lus lees paub txog peb cov cuab yeej siv tsis yog tsuas yog theoretical xwb; es, lawv tau lees paub los ntawm kev sim dav dav thiab tiag - kev xa tawm thoob ntiaj teb. Xav txog cov lus tseeb uas muaj tseeb no:

Thib peb - tog hom kev xeem paub meej tias npuas - kaw nruj rau API 598 thiab ISO 5208 Rate A cov qauv. Tom qab 10,000 lub voj voog ua haujlwm, xoom pom tau pom tau pom.

Kev ntsuas kev qaug zog ywj pheej qhia tau tias muaj 2.5 - fold muaj kev nyab xeeb ntawm qhov siab tshaj plaws, yog li dhau ASME B16.34 cov cai.
Cov ntaub ntawv teb los ntawm 127 kev teeb tsa thoob plaws peb lub tebchaws qhia qhov nruab nrab lub sijhawm nruab nrab ntawm kev kho 8.7 xyoo, piv rau kev lag luam nruab nrab ntawm 4 - 5 xyoo rau cov khoom sib piv.





Txhua lub manifold tawm hauv peb lub tsev yuav raug kuaj hydrostatic ntawm 1.5 npaug ntawm qhov ntsuas siab. Cov ntaub ntawv xeem tuaj yeem rov qab mus rau tus lej lej. Cov ntaub ntawv pov thawj, cov txheej txheem vuam, thiab NDT cov ntaub ntawv tau muab nrog rau txhua qhov kev xa khoom, muab cov ntaub ntawv ua tiav rau kev tswj xyuas kev ua raws cai thiab kev tshuaj xyuas zoo.
Peb cov chaw tsim khoom tuav tswj ISO 9001: 2015 ntawv pov thawj, thiab peb kuj muaj ntxiv ASME Tshooj VIII Division 1 kev lees paub rau siab - uas muaj cov khoom. Rau cov haujlwm thoob ntiaj teb, peb muab CE cim thiab PED ntawv pov thawj raws li qhov xav tau.









Tsis txhob khom rau tsawg dua hauv cov khoom uas tiv thaiv koj cov neeg ua haujlwm, khoom siv, thiab cov hom phiaj tsim khoom. Peb Cov Khoom Siv Siab thiab Tsis Txaus Siab Manifold ua kom ntseeg tau tias koj xav tau kev ua haujlwm, txhawb nqa los ntawm kev tshaj lij engineering thiab kev lees paub zoo uas koj tuaj yeem ntseeg tau.
Hu rau peb cov kws tshaj lij daim ntawv thov hnub no rau:
Kev ntsuas qhov system pub dawb thiab kev pabcuam sizing
Cov lus qhia ntxaws ntxaws nrog cov lus qhia tshwj xeeb
Cov kev sim ua piv txwv rau cov ntawv thov tsim nyog
Kev xa khoom sai sai muaj rau cov haujlwm tseem ceeb
[Thov ib Quote]|[ Hu rau tus kws ua haujlwm ]|[Download Technical Datasheet]
Hu rau peb ntawm [Koj Tus Xov Tooj] lossis xa email rau peb ntawm [Your Email Address] kom tau txais kev pab tam sim ntawd.
Hauv qab no yog ib qho yooj yim, npaj tau- rau- siv cov nplooj ntawv cov khoom siv rau "High thiab Low Pressure Manifold Equipment" tailored rau wholesale/bulk buyers (distributors, system integrators, MRO suppliers). Txhua ntu ua raws li koj cov qauv thov thiab sau cov cai (qhov zoo piav qhia vim li cas → kev ua tau zoo → cov txiaj ntsig ntawm cov neeg yuav khoom).





• Title: High & Low Pressure Manifold Equipment for Industrial Fluid Systems
• Ib qho - kab suab: Centralized manifold tov rau compressors, roj / nqus cov kab thiab hydraulic systems - txo cov ntsiab lus xau thiab lub sijhawm teeb tsa, txo qis kev pheej hmoo poob.
• Cov ntaub ntawv pov thawj ceev: Txiav kev teeb tsa ua haujlwm ntau dua lossis sib npaug li 30% thiab txo cov xau- cuam tshuam txog sijhawm poob txog li 40% (cov ntaub ntawv teb).





Cov kab lus luv luv: Peb cov manifolds yog precision{0}}machined stainless/aluminium lub cev nrog modular cartridge li qub thiab cov chaw nres nkoj txheem. Tsim los rau kev sib xyaw ua ke siab - thiab qis - cov voj voog siab, tsim nyob rau hauv ISO9001 Hoobkas, kuaj rau API / ASME cov chav kawm siab.

Cov khoom siv: 316L SS lossis anodized 6061-T6 txhuas; Chaw nres nkoj xaiv: BSP / NPT / Flange.
Cov ntsiab lus tseem ceeb (cov npe luv): Siab ntau: nqus mus rau 700 bar (qauv-nyob ntawm); Chaw nres nkoj loj: 1/8 "-2"; Qhov kub thiab txias: -40℃rau +200 degree; Txheem foob: FKM / PTFE. PDF spec ntawv download link.





Modular cartridge architecture-vim li qub thiab ntsuas ntsuas yog ntsaws- hauv cov cartridges, kev kho yog cov cuab yeej- pub dawb → txhais tau tias- sij hawm-rau- kho txiav los ntawm 60% → distributors muag qis dua -TCO systems thiab cog lus ceev ntawm qhov chaw kho.
Integrated leak- txo cov pob qij txha - vim tias peb siv welded + O- ntiv nplhaib cov ntsaws ruaj ruaj thiab qhov chaw nres nkoj precision, cov ntsiab lus xau poob qis heev → cov khoom poob qis & kev tswj hwm kev pheej hmoo → ntxim nyiam rau kev nyab xeeb-cov neeg yuav khoom thiab cov ntawv cog lus ntau.
Dual - kev sib cais kev sib cais siab - vim hais tias cais cov sab hauv thiab cov kev pab cuam yog tsim los rau hauv qhov thaiv, siab hla - tham tshem tawm → ruaj khov kev ua tau zoo nyob rau hauv kev sib xyaw ua ke → txo qhov ua tsis tiav thiab kev lees paub.
Standardized mounting & porting - vim manifolds phim kev lag luam mounting patter



Cim npe nrov: Tuam Tshoj siab thiab tsis tshua muaj siab manifold khoom lwm tus neeg, Hoobkas
